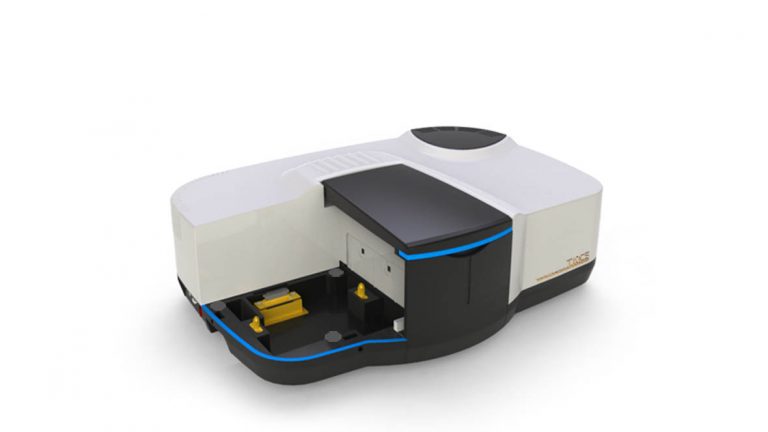

T9DCS UV-Vis

  • The optical design of T9DCS offers extremely low stray light characteristics (≤0.00004%T NaI,220 nm) which allow for an extensive photometric range (-8.0 – 8.0Abs).
  • Measurements at deep ultra-violet wavelengths can also be achieved with the use of Nitrogen purged optics.
  • The instrument can be optically configured to suit the needs of the sample using a continually adjustable slit for precise control of spectral resolution and beam size adjustment using an attenuating wheel.
  • Precise wavelength accuracy is ensured by the integrated Mercury Emissions Lamp used for automatic correction of spectral deviation.

T9DCS UV-Vis

  • The optical design of T9DCS offers extremely low stray light characteristics (≤0.00004%T NaI,220 nm) which allow for an extensive photometric range (-8.0 – 8.0Abs).
  • Measurements at deep ultra-violet wavelengths can also be achieved with the use of Nitrogen purged optics.
  • The instrument can be optically configured to suit the needs of the sample using a continually adjustable slit for precise control of spectral resolution and beam size adjustment using an attenuating wheel.
  • Precise wavelength accuracy is ensured by the integrated Mercury Emissions Lamp used for automatic correction of spectral deviation.
  • True Double Beam Double Monochromator Optics, and fully sealed to provide ultra-low stray light (0.00004%%T @220nm) and high photometric range (-8.0~8.0 Abs)
  • 185– 900nm Wavelength range with a Nitrogen purge
  • Precise Wavelength accuracy is ensured by the integrated Mercury lamp for automatic correction
  • Continuously selectable spectra bandwidth from 0.1-5nm
  • Beam size is continuously adjustable for a variety of applications including ultra-volume cuvettes

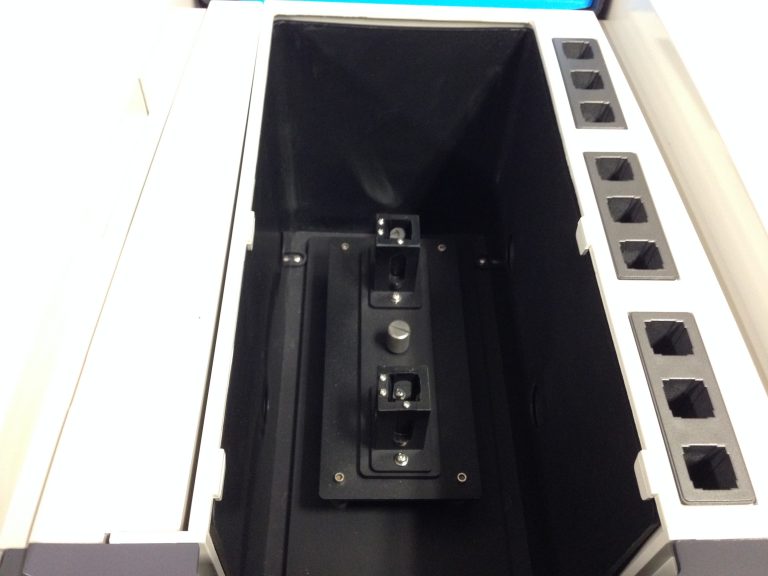

  • Large sample compartment suitable for all kinds of accessories, especially for 150mm integrating sphere
  • Support WIFI communication in field operation
  • The integrated Mercury Emissions Lamp with automatic correction function ensures precise wavelength accuracy

The choice of measuring wavelength

Normally taking the wavelength which has the most absorbance as the measuring wavelength (λ max) to attain the highest analysis sensitivity is called the most absorbance principle. And the absorbance will change a little along with wavelengths changing around the λ max, so we can get better precision. But we would like to take the low sensitivity measuring wavelength as the absorption peak wavelength when measuring high-concentration compounds, to guarantee the corrective curve has enough linear range. If the absorption peak in the wavelength λ max is too thin, we can adopt a little lower sensitivity wavelength to measure the condition that satisfies the need for analysis sensitivity, which is to decrease the deviation of Beer’s Law.

The choice of absorbance range

Because of the unstable light source, inaccuracy of reading, or alternation of lab conditions in the measurement, any photometer has some measuring error. Because the transmittance T in the absorbance law is negative logarithm to the concentration C, from the curve of negative logarithm we can see, the relative error of the same transmittance in different concentrations is different. The relative error is very big when the concentration is too high or too low, so we should choose the proper absorbance range to decrease the relative error of the result. In practice, we can adjust the concentration of the solution or the length of the cell to make the absorbance in the required range.

The choice of bandwidth

Bandwidth will affect the sensitivity of measurement and the linear range of the correction curve. If the bandwidth is too wide, the monochromatic light of incidence will be less, the correction curve will deviate from Beer’s Law, and the sensitivity will be lower. If the bandwidth is too thin, the gain of the instrument will be very high, the noise will increase, and it’s not good for measurement. Measure the deviation of absorbance along with the bandwidth to choose the proper one. The absorbance will not change if the bandwidth is in a range, but the absorbance will decrease if the bandwidth is as wide as some level. So the widest bandwidth which does not decrease the absorbance is the proper one we should choose.

034d4b81ddfd2b8d47ecebfc6b54276
Double beam thermostatic cell holder
3a22b21acaf48deac91c88e9b02ecd9
Double beam relative specular reflection accessories
b8f1320d9ee9e28dae61b949c79f67c
Double beam test tube holder
b5cf33c96cd696c75c84a71719847e1
Double beam micro cell holder
9304ddcef7b6d492de203245edfe2ec
Double beam angle adjustable solid sample holder
505d092687cde44e8941b0c10c8bebc
Dual channel sipper pump accessories
c5b3824656ae6c8272412f5d264a793
Double beam thermostatic 5-cell holder
e0b447a29ec7397f4b5c9b1a126b0ad
Double beam 50mm long path length 5 cell holder
8262ab85c4cae5c4ee22c233e69a78f
Double beam 100mm long path length cell holder
25391e2cd5ed667714dd5547ecdcee0
Double beam dissolution accessories
824a5edd005006c1d4e3fc35a3863cd
Double beam automatic 8-cell holder
750289f9609870317ff3627f3d06c93
Double beam solid sample holder
769b3cee8ba35cb00690d72ac517910
Double beam 60mm/150mm integrating sphere
  1. Biotech & life science clinical analysis, disease control analysis, micro sample testing in the field of life, human biochemical index analysis, metabolite analysis, test the micro samples of life science and provide DNA/Protein detector to measure the DNA/Protein concentration etc.
  2. Environmental monitoring & control Monitoring of water quality, atmospheric pollution, rainfall and soil contamination.
  3. Food & Beverage production and quality control Analysis of additives preservatives and flavours, fat contents,enzyme, glucose, flavouring, minerals, vitamins, etc.
  4. Agricultural monitoring Can be applied in various agriculture, such as pesticide detection, crop analysis, animal medicine analysis, fertilizer inspection, soil analysis, animal food stocks inspection etc.
  5. Geology & MetallurgyDetermination of metallic elements and inorganic salt in minerals.
  6. Clinical & forensic analysis Measuring the change in absorbance of turbid biological samples can be challenging as the inherent background absorbance of the sample may be over 4 Abs
  7. Education in universities and colleges Determination of complex composition, Obtaining kinetics curves, acid-base dissociation constant, photometric titration, etc.
  8. Clinical & forensic analysis Measuring the change in absorbance of turbid biological samples can be challenging as the inherent background absorbance of the sample may be over 4 Abs
  9. Metrology verification Can be used for standard material verification and calibration, such as standard filters, potassium dichromate standard solutions, etc.
