Products

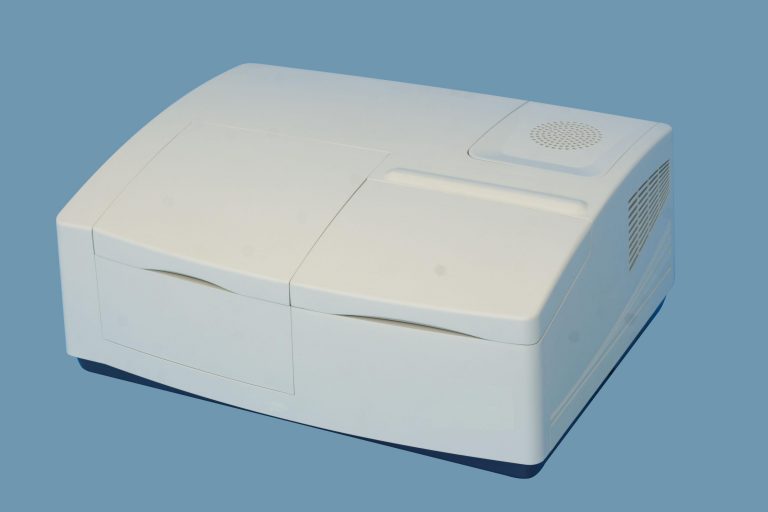

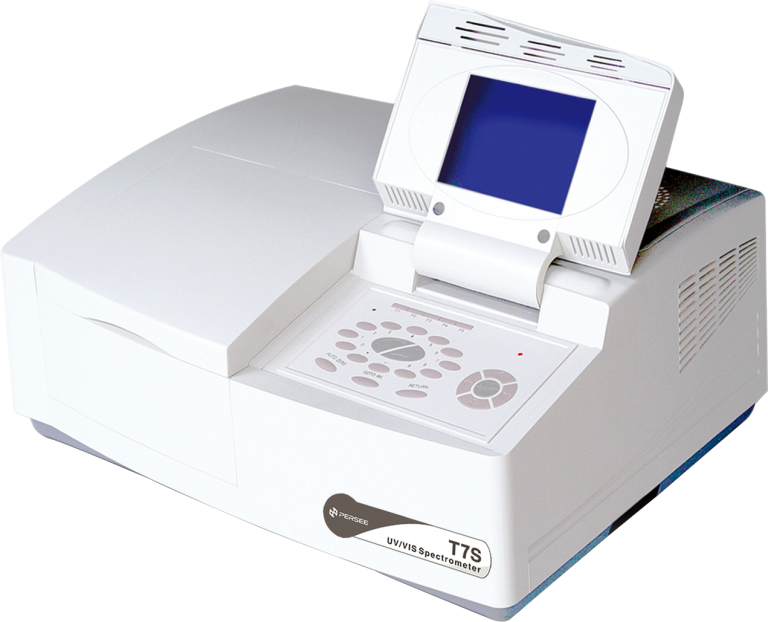

T7S UV-Vis

T7S is a high-performance split beam scanning spectrophotometer available with variable spectral bandwidth, which is innovative in terms of instrument application, and mechanical and optical design. Electronic control and software enable this while maintaining features that are well-established and accepted throughout the industry.

T7S can carry out photometric measurements, spectrum scans, quantitative determinations, and DNA/Protein analysis. When interfaced with a PC using the UV-Win software, many more features are available including three-dimensional spectrum, kinetic measurements, method and data storage, exportation of data in multiple formats and GLP administration features.

T7S UV-Vis

T7S is a high-performance split beam scanning spectrophotometer available with variable spectral bandwidth, which is innovative in terms of instrument application, and mechanical and optical design. Electronic control and software enable this while maintaining features that are well-established and accepted throughout the industry.

T7S can carry out photometric measurements, spectrum scans, quantitative determinations, and DNA/Protein analysis. When interfaced with a PC using the UV-Win software, many more features are available including three-dimensional spectrum, kinetic measurements, method and data storage, exportation of data in multiple formats and GLP administration features.

  • Simple mechanical structure and modular electronics make routine maintenance very easy.
  • High performance fixed 2nm or variable spectral bandwidth.
  • Holographic blazed grating 1200 lines/mm.
  • Wavelength accuracy +0.3nm.
  • Spectral Bandwidth 0.5 , 1 , 2 , 5nm(variable slit)
  • Supplied with a motorized 8-cell changer and pre-aligned Tungsten and Deuterium lamps.
  • The high degree of automation requires minimal key depressions to start the analysis.
  • Several optional accessories are available which increase the flexibility of the analysis.
  • Analysis for photometric measurement, spectrum scans, quantitative determination and DNA/Protein analysis.
  • UV-Win software gives additional functionality including 3D spectrum analysis and compliance with GLP protocol.
  • Holographic grating greatly reduces the stray light of the instrument and makes the analysis more accurate.
  • The split beam ratio optics ensures good stability.
  • The main unit of the spectrophotometer cananalyse for photometric measurement, quantitative measurement, spectrum scan, DNA/Protein analysis and can print data.
  • When connected to a computer the Spec UV software adds many additional functions, such as 3D spectrum analysis, and GLP laboratory protocol.
  • It can be applied in fast pesticide remain detection, environment protection, inspection and quarantine and other fields.
  • With a high degree of automation, the operator only needs to press keys twice when measuring ordinary samples.
  • Many optional accessories enhance the flexibility and measurement range of the instrument.
  • The simple mechanical structure and modular electrical design make routine maintenance easy.
  • The deuterium and tungsten lamps can be easily replaced and are supplied pre-aligned.
DS181-1 T7 Adjustable Angle Solid Sample Holder
Adjustable Angle Solid Sample Holder
PTC-2 Peltier Module
PTC-2 Peltier Module
CH188-1 T7D 2
CH188-1 T7D 2
LS181-1 5 cell holder
Universal 5 Position 5-50mm Path Length Motorized Cell Holder
CH181-1 Constant temperature cell holder
5 Position 10mm Constant Temperature Cell Changer
Automatic 8 Position Cell Changer
8 Position 10mm Path length Cell Holder Motorised Assembly
T70 LS181-1
T70 LS181-1
T7 Variable 13-16mm Test Tube Holder
T7 Variable 13-16mm Test Tube Holder
Sipper Pump
Sipper pump

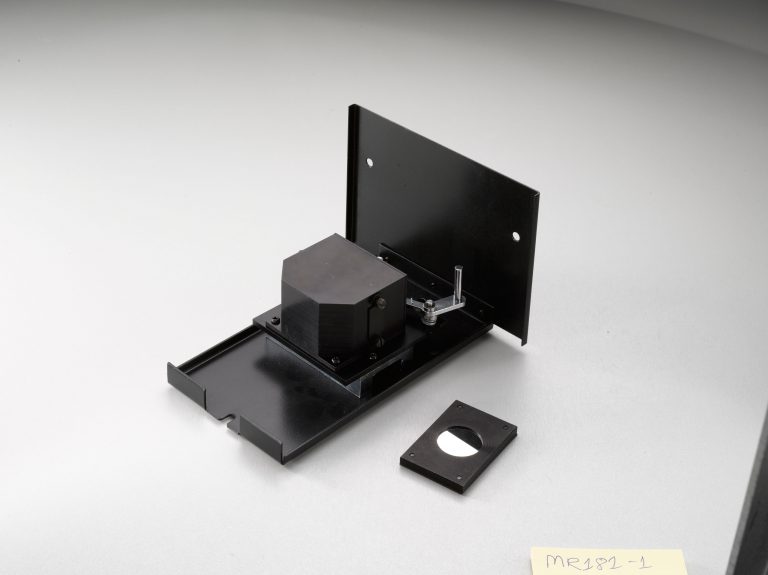

MR181-1
MR181-1
MH181-1 T7 Micro Cell Holder
MH181-1 T7 Micro Cell Holder
  1. Education in universities and colleges Determination of complex composition, Obtaining kinetics curves, acid-base dissociation constant, photometric titration, etc.
  2. Environmental monitoring & control Monitoring of water quality, atmospheric pollution, rainfall and soil contamination.
  3. Food & Beverage production and quality control Analysis of additives preservatives and flavours, fat contents, enzymes, glucose, flavouring, minerals, vitamins, etc.
  4. Agricultural monitoring Can be applied in various agriculture, such as pesticide detection, crop analysis, animal medicine analysis, fertilizer inspection, soil analysis, animal food stocks inspection etc.
  5. Geology & MetallurgyDetermination of metallic elements and inorganic salt in minerals.
  6. Gas & oil Can be applied in petrochemical production process control, product inspection
