T7D UV-Vis

T7D/T7DS is a high performance double beam scanning spectrophotometer available with a variable spectral bandwidth, which is innovative in terms of instrument application, mechanical and optical design.

Electronic control and software enable this while maintaining features that are well established and accepted through the industry.

T7D/T7DS is able to carry out photometric measurements, spectrum scans, quantitative determinations and DNA/Protein analysis.When interfaced to a PC using the UV-Win software, many more features are available including three-dimensional spectrum, kinetic measurements, method and data storage, exportation of data in multiple formats and GLP administration features.

Chat Now

T7D UV-Vis

Electronic control and software enable this while maintaining features that are well established and accepted through the industry.

Chat Now

Accurate analysis

Holographic grating greatly reducing stray light of the instrument and making the analysis more accurate.

Stable performances

The dual beam optics ensures good stability.

High-speed measurement

The fastest scanning speed is over 1000nm.

Powerful function

The main unit of the spectrophotometer can analyse for photometric measurement, quantitative measurement, spectrum scan, DNA/Protein analysis and can print data.When connected to a computer the Spec UV software adds many additional functions, such as 3D spectrum analysis, GLP laboratory protocol. It can be applied in fast pesticide remain detection, environment protection, inspection and quarantine and other fifields.

Convenient operation

High degree of automation, the operator only needs to press keys twice when measuring ordinary samples.

Easily upgraded

Many optional accessories enhance the flflexibility and the measurement range of the instrument.

Easy routine maintenance

The simple mechanical structure and modular electrical design make the routine maintenance easy.

Original technology

The deuterium and tungsten lamps can be easily replaced and are supplied pre-aligned. A motorised automatic 8-cell holder is supplied as standard which is particularly useful for the determination of pesticides.

Holographic grating greatly reduces the stray light of the instrument and makes the analysis more accurate.
The split beam ratio optics ensures good stability.
The main unit of the spectrophotometer can analyse for photometric measurement, quantitative measurement, spectrum scan, DNA/Protein analysis and can print data.
When connected to a computer the Spec UV software adds many additional functions, such as 3D spectrum analysis, and GLP laboratory protocol.
T7D can be applied in fast pesticide remain detection, environment protection, inspection and quarantine and other fields.
With the high degree of automation, the operator only needs to press keys twice when measuring ordinary samples.
Many optional accessories enhance the flexibility and measurement range of the instrument.
The simple mechanical structure and modular electrical design make routine maintenance easy.
The deuterium and tungsten lamps can be easily replaced and are supplied pre-aligned.

LS181-1 T7D

Micro Printer Accessory

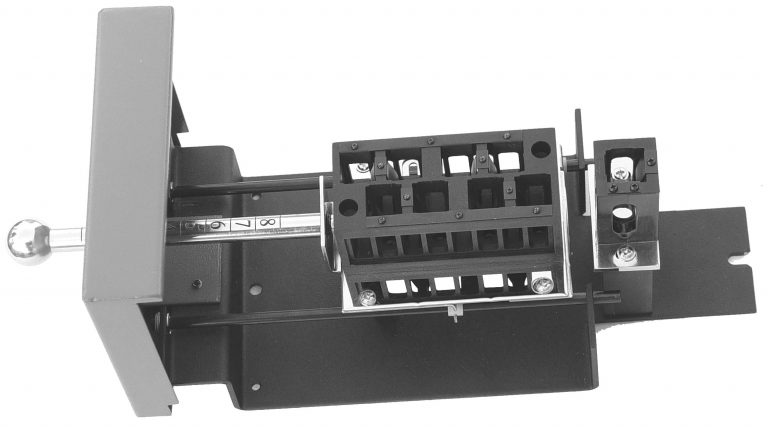

8 Position 10mm Path length Cell Holder Motorised Assembly

PS19-2 Sipper pump sampler

PTC-2 Peltier Module

CH188-1 T7D 2

Education in universities and colleges： Determination of complex composition, Obtaining kinetics curves, acid-base dissociation constant, photometric titration, etc
Environmental monitoring & control： Monitoring of water quality, atmospheric pollution, rainfall and soil contamination.
Food & Beverage production and quality control： Analysis of additives preservatives and flavours, fat contents,enzymes, glucose, flavouring, minerals, vitamins, etc.
Agricultural monitoring： Can be applied in various agriculture, such as pesticide detection, crop analysis, animal medicine analysis, fertiliser inspection, soil analysis, animal food stocks inspection etc.
Geology & Metallurgy： Determination of metallic elements and inorganic salt in minerals.
Gas & oil： Can be applied in petrochemical production process control, product inspection
