Mastering the Use of a UV Vis Spectrometer for Concentration Analysis

Ultraviolet-Visible (UV Vis) spectrometry is a vital tool. It helps measure how much stuff is in a sample by checking how light gets soaked up. People use it in many fields, like testing water or making medicines. It’s accurate, dependable, and flexible. This guide explains how to get good at using a UV Vis spectrometer for measuring amounts, focusing on Persee’s awesome T6U and T7 models. By learning the basics, methods, and uses, you can make your tests better and get true results.

Fundamentals of UV Vis Spectrometry

UV Vis spectrometry uses light to learn about a sample’s makeup. It checks how light acts when it hits stuff. This part covers the key rules, pieces, and things you measure to understand this method.

Principles of UV Vis Spectroscopy

UV Vis spectroscopy checks how much light a sample soaks up or lets through. It works in the ultraviolet (190–400 nm) and visible (400–800 nm) light ranges. When light goes through a sample, bits in the sample grab certain light waves. This makes electrons jump to higher energy spots. We measure this soaking-up to figure out how much of certain bits—called chromophores—are in the sample. The method is quick and easy, perfect for everyday tests.

Key Components of a UV Vis Spectrometer

A UV Vis spectrometer has a few important parts that work together to give correct info:

• Light Source: Deuterium lamps give UV light. Tungsten lamps give visible light.
• Monochromator: Splits light into exact waves for clear tests.
• Sample Holder: Usually a cuvette. It holds the sample for checking.
• Detector: Catches how much light comes through or gets soaked up.
• Data Processing Unit: Turns detector info into numbers you can read, like absorbance or transmittance.

Measurement Variables: Transmittance and Absorbance

Transmittance (T) shows how much light passes through a sample compared to the starting light. It’s shown as a percentage (%T). Absorbance (A) is the opposite, kind of. It’s figured out with A = -log(T). Absorbance links directly to how much stuff is in the sample. So, it’s the main thing used to measure amounts. Knowing these terms helps you read spectrometer results right.

Now that you know the basics, let’s see how to use this for measuring amounts.

Techniques for Concentration Analysis Using a UV Vis Spectrometer

To measure amounts well, you need to learn certain ways. These include using the Lambert-Beer Law, setting up right, and preparing samples carefully. This part explains these steps to get solid results.

The Role of Using the Lambert-Beer Law

The Lambert-Beer Law (A = εlc) is super important for measuring stuff. Here’s how it goes:

• A: Absorbance, how much light gets soaked up.
• εε: Molar extinction coefficient (L mol⁻¹ a number showing how much light a substance absorbs.
• l: Path length, how far light travels through the sample (in cm).
• cC: Concentration, how much stuff is in the sample (mol/L⁻¹).

This law tells us absorbance grows with more stuff or a longer path. If you know εε and l, you can find c from absorbance. This lets you measure amounts exactly.

Calibration Procedures for Accurate Measurements

Calibration makes sure your results are true. It means checking the machine with known samples. You need to make a calibration graph and use standard solutions.

Creating a Calibration Curve

A calibration graph shows absorbance against known amounts. Here’s how to do it:

1. Make a bunch of solutions with set amounts of stuff.
2. Check each one’s absorbance at the stuff’s best wavelength (λmax).
3. Draw a graph. Put absorbance on the y-axis, amount on the x-axis. You get a straight line.
4. Use the graph’s formula (y = mx + b) to find unknown amounts.

Importance of Standard Solutions

Standard solutions must be clean and steady. They need to match the sample’s mix to avoid errors. Check them often to keep your graph right, as machines can drift or test setups change.

Preparing Samples for Reliable Results

Getting samples ready right is key for good results. Here are some tips:

• Pick a Solvent: Use liquids like water or ethanol. They shouldn’t soak up light in your test range.
• Keep Samples Clear: Filter cloudy ones samples to stop light from scattering.
• Clean Cuvette: Use spotless cuvettes. Dirty ones mess up results.
• Right Amount: Thin out samples so absorbance stays in a good range (0.1–1.0).

Applications of UV Vis Spectrometry in Concentration Determination

UV Vis spectrometry helps find amounts in many areas. This part shows how it’s used in checking the environment, medicines, food, and farming.

Environmental Monitoring and Water Quality Analysis

UV Vis spectrometers check things like nitrates or organic bits in wastewater. This helps follow green rules. For example, Persee’s T6U is super sensitive. It spots tiny amounts of bad stuff, helping with zero liquid discharge (ZLD) goals.

Pharmaceutical and Life Sciences Applications

In medicine, UV Vis spectrometers checks DNA, RNA, or proteins at 260 nm or 280 nm. It also tests if drugs stay good. It’s key for quality checks and rules. Persee’s T7 has auto features for fast, big tests.

Food and Beverage Industry Quality Control

UV Vis spectrometers keeps food safe by checking additives or bad stuff. It measures things like phenols in wine or caffeine in drinks. Persee’s tools give quick results for quality checks.

Agricultural Testing and Soil Analysis

In farming, UV Vis checks soil nutrients or pesticide bits. It helps farmers use fertilizer better. Persee’s strong spectrometers work well in fields.

These uses show how flexible UV Vis spectrometry is. But to keep it working great, you need care and the right tools.

Optimizing the Performance of a UV Vis Spectrometer

To keep your UV Vis spectrometer running smoothly, you need regular care and good tools. This part gives handy tips and advice.

Maintenance and Troubleshooting Tips

Regular care keeps your machine steady. Try these steps steps:

• Clean Optics: Wipe dust off mirrors and lenses. Dust cuts signals.
• Change Lamps: Watch deuterium and tungsten lamps’ life. Swap them when needed.
• Check Calibration: Test wavelength and absorbance often.
• Fix Issues: If results are noisy, check loose wires or cloudy samples.

Persee’s T6U and T7 manuals have clear care plans to make it easy.

Selecting the Right Appropriate Accessories

Good tools make tests better and easier.

Cuvettes and Sample Holders

Cuvettes need to fit the sample and light range. Quartz ones work for UV light. Glass is fine for visible light. Persee has lots of cuvettes for different jobs.

Light Sources: Deuterium and Tungsten Lamps

Deuterium lamps give steady UV light. Tungsten lamps cover visible light. Persee’s T6U and T7 lamps last long, saving money on swaps.

Keeping your spectrometer in top shape gives great results. Now, let’s talk about Persee, a company you can trust.

Persee: A Trusted Supplier of High-Quality UV Vis Spectrometers

Persee Analytics is a top name in test tools. They make awesome UV Vis spectrometers. This part talks about Persee’s skills and their T6U and T7 models.

Overview of Persee’s Expertise in Analytical Instruments

Persee started to help science grow. They mix cool tech with easy designs. With years of work, they help fields like medicine, green testing, and farming. People worldwide trust their top-notch tools.

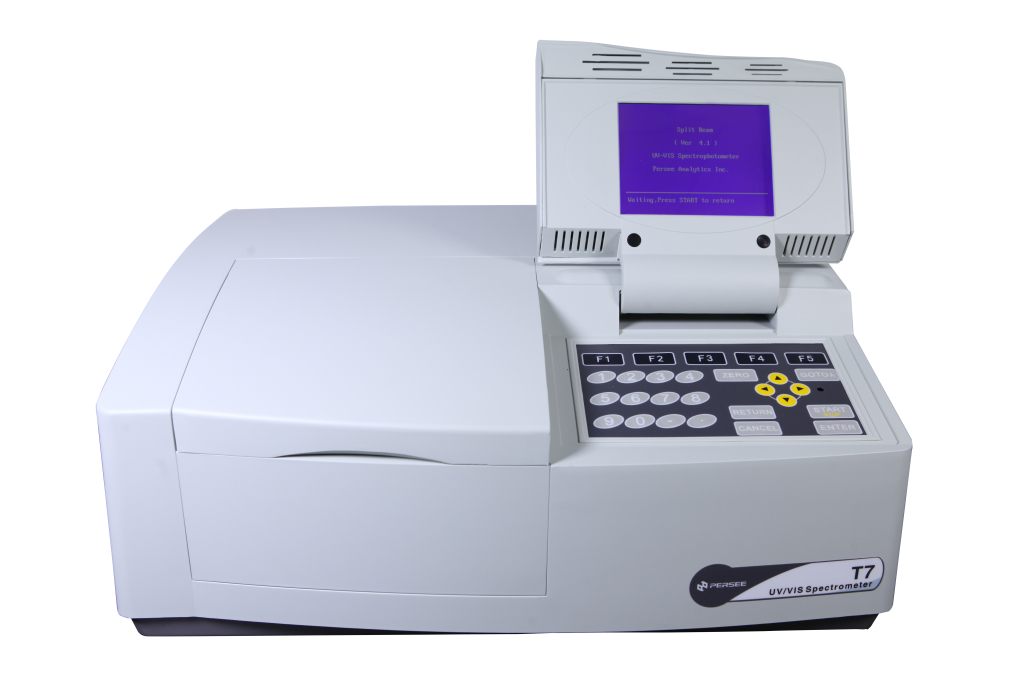

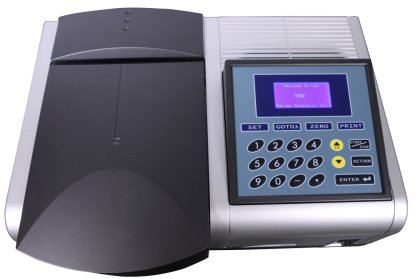

Features of Persee’s T6U and T7 Models

Persee’s T6U and T7 are built for exact and flexible work.

Advanced Technology for Precise Accurate Results

Both have cool features:

• Sharp Monochromators: Pick exact light waves.
• Low Stray Light: Cuts errors in tests.
• Easy Software: Makes data simple to read and share.

Flexible Versatile Applications Across Industries

The T6U is great for normal tests. The T7 fits big research with auto tools and tiny sample options. Both work for many needs, like water tests or medicine checks.

Feature	T6U	T7
Wavelength Range	190–1100 nm	190–1100 nm
Stray Light	≤0.05%T	≤0.05%T
Sample Volume	Standard cuvette	Standard cuvette
Automation	Manual	Semi-automated

Persee’s focus on quality makes them a go-to for UV Vis tools. Check more information on their Contact Us page.

Conclusion

Getting good at UV Vis spectrometry for measuring amounts opens up big insights. Learn the rules, use the Lambert-Beer Law, and keep your spectrometer in shape. Then, you get true results. Persee’s T6U and T7 have cool tech and work for many jobs. Whether testing water or checking medicines, UV Vis is a must-have tool. Persee is a partner you can count on.

Frequently Asked Questions (FAQs)

What’s the difference between transmittance and absorbance?

A:Transmittance shows how much light goes through a sample, in percent. Absorbance measures how much light gets soaked up. It’s used to figure out amounts.

How do I pick the right cuvette for my test?

A: Use quartz cuvettes for UV light (190–400 nm). Glass works for visible light (400–800 nm). Make sure they’re clean and fit your sample’s type.

Can I use a UV Vis spectrometer for solid samples?

A: Yes, with tools like reflectance probes or integrating spheres. But liquid samples are more common.
