Applications

Gas chromatography, or GC, is a common method for separating and figuring out volatile compounds in complex mixtures. It is a very important tool in both research labs and factories. This is because it’s accurate, fast, and can be used for many things.

Importance of Analyzing Volatile Compounds

Volatile organic compounds (VOCs) are found in many products. You can see them in medicines, foods, environmental samples, and petrochemicals. Looking at them is very important for quality control, following regulations, and checking on the environment. For example, VOCs can change how food tastes or how well drugs work. They can also show if there is pollution in the air or water.

Basic Principles of Gas Chromatography

So, how does gas chromatography work? First of all, a sample is put into a hot inlet, where it turns into a gas. Then, a carrier gas, like helium or nitrogen, pushes the gas sample through a long tube called a chromatographic column. This column is coated with a stationary phase. Different parts of the sample stick to this coating for different amounts of time. Because of this, they come out at different times. Finally, detectors like a flame ionization detector (FID) or a mass spectrometer (MS) spot them.

Common Applications in Industry and Research

GC is used in many fields. Forensic scientists use it to test for drugs. Environmental scientists use it to find pollutants. In the drug industry, it’s used to check for leftover solvents. It is also helpful for making perfumes and in oil refining.

Direct Injection in Gas Chromatography

Direct injection is one of the simplest ways to get samples into a GC machine.

How Direct Injection Works

With direct injection, a tiny syringe puts a liquid sample right into the GC inlet. The inlet is very hot. This heat quickly turns the sample into a gas. After that, the carrier gas carries it into the column.

Advantages of Direct Injection

Direct injection has some strong points that make it great for many regular tests.

This method doesn’t need a lot of sample handling. A lot of the time, you don’t need to prepare the sample at all. This makes the method quicker and simpler than other types of analysis.

Because samples go right into the machine without extra steps, you can get through them faster. This is perfect for labs that have a lot of samples to test.

Limitations and Challenges

Even with its benefits, direct injection has some downsides to think about.

Sometimes, things in the sample don’t turn into a gas. These non-volatile bits can build up and make the machine dirty over time. What’s more, this gunk can cause problems with later tests or make the results worse.

You might have to clean or change parts like the inlet liners and columns more often. This is especially true if you are testing messy samples or ones with heavy components.

Headspace Sampling in Gas Chromatography

Headspace sampling is another option. It’s a way to get around some of the problems of direct injection, especially for volatile analytes.

Principles of Headspace Sampling

Headspace sampling works by only testing the volatile compounds in the gas part above a sample. This gas area is called the “headspace.” The sample itself can be a liquid or a solid, and it stays inside a sealed container.

The static headspace method is pretty straightforward. A sample is put in a sealed vial and is usually heated. It sits for a while until the volatile parts move into the headspace gas. Once things are settled, a small amount of this gas is taken and put into the GC machine.

This method is also called purge-and-trap. Here, an inert gas is used to continuously push the volatiles out of the sample. These volatiles are then collected on a special trap. Later, they are released from the trap and sent to the GC column for checking.

Benefits of Using Headspace Sampling

Using headspace sampling has several key pluses over direct injection.

The gas sample from headspace GC is much “cleaner” because it doesn’t have any of the heavy, non-volatile stuff. So, this stops the column from getting overloaded or dirty. It also helps the column last longer.

Since only the light, volatile parts go into the machine, there is much less wear and tear on sensitive parts. This means the inlet liner and column don’t get damaged as quickly. Thus, you don’t have to do maintenance as often.

Drawbacks to Consider

Even though it has great features, headspace sampling has its own limits.

Static headspace needs time for the sample and the gas above it to balance out. This can make preparation take longer than it does for direct injection. Automation can help with this, but the wait time is still there.

Not every compound likes to move into the headspace. Things that aren’t very volatile might not show up well. This can lead to weak signals unless you use a method like dynamic headspace to concentrate them.

Key Differences Between Headspace and Direct Injection GC

Knowing how these two methods are different helps analysts pick the right one for their job.

Sample Introduction Mechanism Comparison

Direct injection puts all parts of the sample into the system. This includes non-volatile materials. Headspace GC, however, only focuses on the volatile compounds in the gas. This makes it a great choice for a clean analysis.

Impact on Instrument Maintenance and Longevity

Because the heavy stuff doesn’t go into the machine with headspace sampling, it prevents column problems. This helps the equipment last longer. In contrast, direct injection can lead to more service calls because of gunk from complex samples.

Differences in Sensitivity and Detection Limits

Headspace GC is often very good at getting reliable results across different concentrations. It can find very small amounts of volatile compounds, sometimes in the sub-μg/mL range. However, direct injection might be better for finding semi-volatile things that don’t move into the headspace easily.

Suitability Based on Sample Matrix Type

Samples that have a lot of non-volatile material work better with headspace GC. Think of things like biological fluids or thick oils. Headspace provides a cleaner way to test them. Direct injection is a good fit for clean samples or those that have a simple makeup.

Choosing the Right Technique Based on Application Needs

Picking between direct injection and headspace GC really depends on your goals and your sample.

Factors to Consider When Selecting a Method

If you are looking at very volatile things, headspace sampling is a great choice. These substances naturally want to become a gas, so the method works well.

Does your sample have heavy oils or solids that could mess up your machine? If so, headspace GC is a cleaner way to go and might save you prep time.

Direct injection is fast and lets you get through many samples, but it might mean more cleaning. Static headspace works well with automatic systems but might take longer to prepare each sample because of the equilibration step.

Enhancing Analytical Performance Through Method Optimization

No matter which method you choose, it’s vital to adjust the settings to get good results.

Temperature Control Considerations

Both methods rely a lot on getting the temperature just right. For direct injection, the inlet temperature controls how well the sample turns to gas. For headspace, the vial’s temperature affects how the volatiles move into the gas phase.

Phase Ratio Adjustments in Headspace Sampling

In headspace, you can change the ratio of the sample volume to the headspace volume. This is the phase ratio. Adjusting it can make the method more sensitive, which is really helpful for low-level VOCs.

Inlet Liner Management in Direct Injection

It’s a good idea to clean or replace the inlet liner regularly. This stops leftover sample material from causing issues in later runs, a key step when you test dirty samples over and over.

Calibration and Validation Protocols for Accurate Results

You must use strict testing rules for both headspace and direct injection GC. This includes proper calibration. Doing so makes sure your results are correct. It is also a must-have for following rules in areas like drug manufacturing and food safety.

Persee: A Trusted Manufacturer of Analytical Instruments

Persee is known as a dependable maker of modern analytical tools. They make strong chromatography systems for lab workers all over the world, including both DI-GC and HS-GC platforms.

Company Background and Industry Certifications

Persee has been making precision tools for decades. They have global certifications like ISO and CE. They help labs that need technology that is ready to meet official standards.

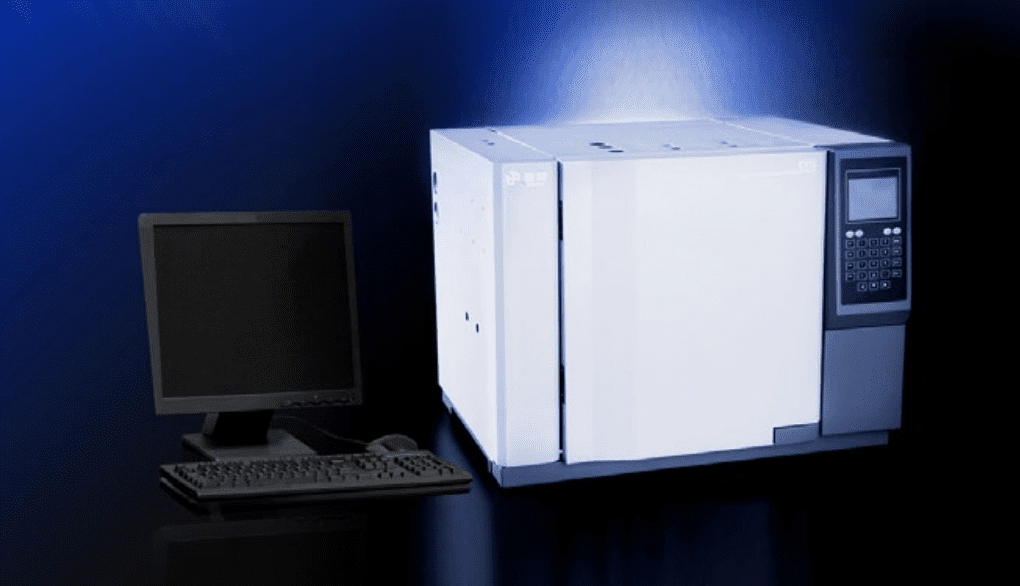

Overview of G5 GC System Features

Persee’s G5 GC shows new ideas with its adaptable design.

Its modular build means it can be set up in many ways. This makes it great for both custom research projects and standard factory use.

The G5 platform can use different detectors, from FID and ECD to TCD. This means it can handle all sorts of detection needs in one machine.

It is built with advanced PID algorithms. These make sure the temperature and flow are very stable and accurate. These are key settings for getting the same results every time.

Commitment to Quality, Innovation, and Global Support

Persee invests in R&D and has a worldwide service network. Because of this, users get reliable instruments for the long haul. They also have a technical support team that is quick to help people everywhere.

Summary of Key Insights

When we compare both methods, we see they have different advantages:

• Direct Injection: It is faster for getting through samples. It is also good for clean samples where you need to know everything that’s inside.
• Headspace Sampling: It keeps the machine cleaner. It is perfect for checking VOCs in complex samples.

Matching the method to your sample is the key to getting the best results. Furthermore, using solid systems like Persee’s G5 will give you more reliable and repeatable data in your lab.

FAQs:

Q1: What type of samples are best analyzed using headspace GC?
A: Headspace GC is excellent for looking at volatile compounds in complex samples. Good examples are pharmaceuticals, food products, environmental waters, or biological fluids. In these cases, heavy residues could mess up the instrument if you used direct injection.

Q2: Can I achieve high sensitivity using static HS-GC?
A: Yes, you can. You can get high sensitivity with static HS-GC if you fine-tune key settings. These include incubation temperature, how long you wait for equilibrium, and the phase ratio. This method can give very consistent results for many analytes, often finding them at very low levels.

Q3: Is automated sampling possible with either technique?
A: Of course. Modern machines can use autosamplers that work with both direct injection syringes and headspace vials. These automated systems are widely available. They provide steady work and reduce human error, which is great for busy quality control labs.
